DIN 2303: the standard that ensures quality and safety in the defense industry

Behind many of the world's military vehicles and systems lie strict quality requirements - among them the German standard DIN 2303, which regulates welding in the defense industry.

The production and maintenance of military equipment places very high demands on quality, safety and reliability. This is especially true for welding processes, where errors can have serious consequences for both function and safety.

One of the standards developed to ensure such requirements is DIN 2303, which is an important piece in military projects controlled from Germany.

What is DIN 2303?

DIN 2303 is a German standard that sets quality requirements for businesses that weld, braze or thermal spray military products.

According to DIN 2303, military products must meet high quality requirements in production and maintenance, due to the static and dynamic loads they are exposed to, their area of ​​application, the increased safety requirements placed on military products, and the need for reliability.

"As defined in this standard, welding, soldering and thermal spraying are considered special processes. The quality requirements for the products cannot be adequately documented retrospectively. The DIN EN ISO 3834 series shall be applied analogously to the processes mentioned above."

In this technical article, you will get an overview of what DIN 2303 is, what requirements the standard sets, and how it is used in practice within the defense industry.

Nordic Steel is certified by DNV to weld according to DIN 2303 for general and special requirements.

Here you can read about all our certifications.

Classifications for manufacturers according to DIN 2303

The DIN 2303 standard divides businesses into four manufacturer qualification classes based on material and safety requirements.

The classification depends on the product type, the materials used and any additional requirements.

Each class has associated quality requirements that the business must meet.

Nordic Steel is qualified in classes Q1 and Q2:

• Class Q1: covers general requirements and applies to businesses working with standardized materials, without increased processing requirements. This includes, among others, unalloyed structural steels, simple austenitic stainless steels and non-hardenable aluminum alloys.
• Class Q2: applies to businesses that work with special materials, such as liquid-hardened steel or heat-treatable aluminum. These materials have higher requirements for processing. Therefore, it may be necessary to follow additional regulations, such as BV 1050 for maritime shipbuilding.

Classification of components and quality requirements

As previously mentioned, quality assurance is important for defense technology products.

The quality requirements depend on which class the components belong to. In DIN 2303, defense components are divided into four classes, based on function and type of load.

The requirements for load-bearing capacity, safety and usability vary depending on the component class.

At Nordic Steel, we are approved in component class 1.

Component class 1 includes products within defense technology that are exposed to high stress and have a high safety significance. Components in this class require the most stringent requirements for quality assurance and material selection.

DIN 2303 certified welding

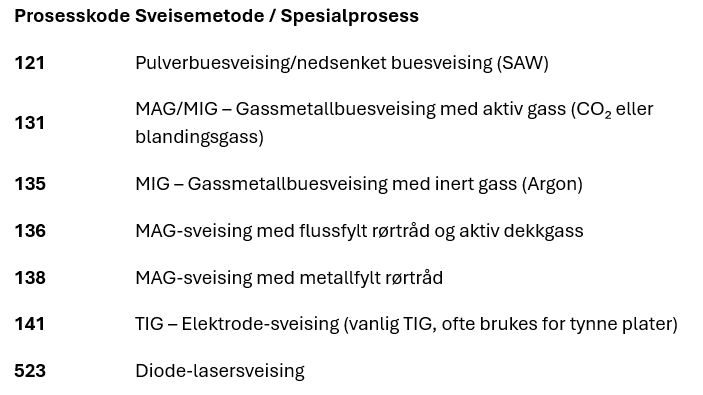

Nordic Steel is approved according to the DIN 2303 standard, with the following welding methods and special processes, according to EN ISO 4063:

Would you like to read more about welding? Here you can read about the difference between MIG/MAG welding and TIG welding.

DIN 2303 certified materials

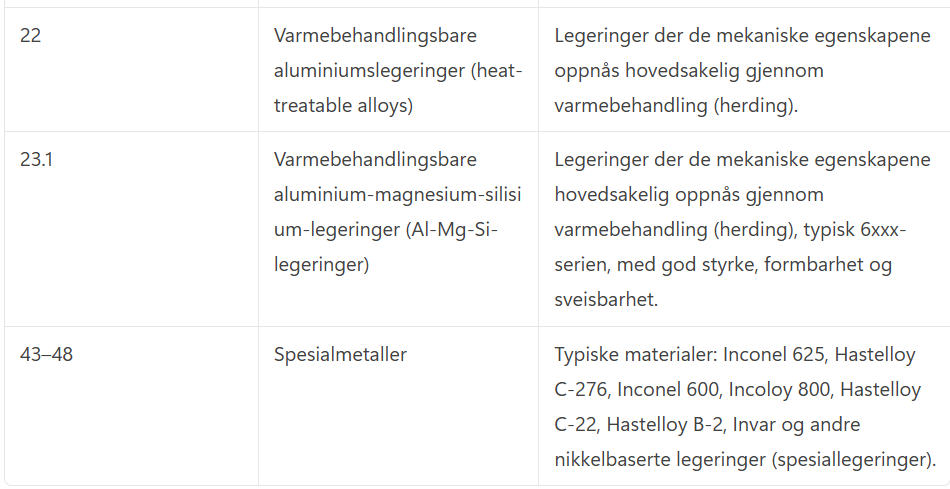

In the table below you will find an overview of the material groups that Nordic Steel can process according to DIN 2303:

Please contact us if you have questions regarding DIN 2303, or have a project that requires certified welding.

Sources: TÜV SÜD, Pressure Equipment Directory (PED)
